Product Summary

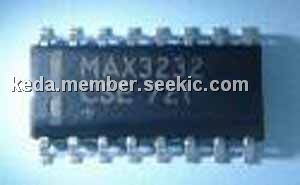

The MAX3232CSE is a transceiver. It has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump.
Parametrics
Absolute maximum ratings: (1)VCC:-0.3V to +6V; (2)V+:-0.3V to +7V; (3)V-:+0.3V to -7V; (4)V+ + V- :+13V; (5)Input Voltages: T_IN, SHDN, EN:-0.3V to +6V, MBAUD:-0.3V to (VCC + 0.3V), R_IN:±25V; (6)Output Voltages:T_OUT:±13.2V,R_OUT:-0.3V to (VCC + 0.3V); (7)Short-Circuit Duration:T_OUT:Continuous; (8)Operating Temperature Ranges:0℃ to +70℃; (9)Storage Temperature Range:-65℃ to +150℃; (10)Lead Temperature (soldering, 10sec):+300℃.
Features
Features: (1)Low Supply Current:300μA; (2)Guaranteed Data Rate:120kbps; (3)Meets EIA/TIA-232 Specifications Down to 3.0V; (4)Pin Compatible with Industry-Standard MAX232; (5)Guaranteed Slew Rate:6V/μs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232CSE |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3232CSE+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3232CSE+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
 |
MAX3232CSE-G05 |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
