Product Summary

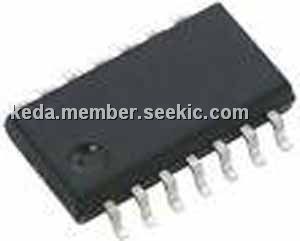

The MAX3232CDR is a line driver/receiver with ±15kV ESD protection. It consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND).
Parametrics
Absolute maximum ratings: (1)Supply voltage range:-0.3 V to 6 V; (2)Positive output supply voltage range:-0.3 V to 7 V; (3)Negative output supply voltage range:0.3 V to -7 V; (4)Supply voltage difference:13 V; (5)Input voltage range:-0.3 V to 6 V, Receivers:-25 V to 25 V ; (6)Output voltage range:-13.2V to 13.2V,Receivers:-0.3V to VCC+0.3V; (7)Package thermal impedance:73℃/W; (8)Operating virtual junction temperature:150℃; (9)Storage temperature range:-65℃ to 150℃.
Features
Features: (1)RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM); (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Operates With 3-V to 5.5-V VCC Supply; (4)Operates Up To 250 kbit/s; (5)Two Drivers and Two Receivers; (6)Low Supply Current:300 μA Typical; (7)External Capacitors:4 × 0.1 μF; (8)Accepts 5-V Logic Input With 3.3-V Supply.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232CDR |
Texas Instruments |
Buffers & Line Drivers 3-5.5V Mult-Ch RS232 |
Data Sheet |
|
|
||||||||||||
|
MAX3232CDRE4 |
Texas Instruments |
Buffers & Line Drivers 3-5.5V Multichannel Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
|
MAX3232CDRG4 |
Texas Instruments |
RS-232 Interface IC 3-5.5V Multich RS- 232 Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
